Install json_exporter

Install json_exporter for access to local and third-party API data

PreviousInstall node_exporterNextInstall Ethereum Metrics Exporter

Last updated 2 years ago

json_exporter

json_exporter queries endpoints providing JSON-formatted data and converts that data into the Prometheus metrics format. It is used to query consensus and execution client JSON APIs, and to query external APIs for price and software release data.

Create System Account

Create a user account under which json_exporter can run.

sudo adduser --system json_exporter --group --no-create-home

Build the json_exporter Executable

Clone the latest release.

mkdir ~/git
cd ~/git
git clone --depth 1 --branch v0.5.0 https://github.com/prometheus-community/json_exporter.git

Build json_exporter from source code.

cd json_exporter
make build

Install json_exporter

Copy the json_exporter executable to the /usr/local/bin directory.

sudo cp json_exporter /usr/local/bin/

Check to see if json_exporter was installed correctly.

/usr/local/bin/json_exporter --version --help

Create a directory for the configuration file.

sudo mkdir /etc/json_exporter

Configure Startup

Create a systemd service file to configure automatic startup of the json_exporter service.

sudo nano /etc/systemd/system/json_exporter.service

Insert the following into the json_exporter systemd service file.

[Unit]
Description=JSON Exporter

[Service]
Type=simple
Restart=always
RestartSec=5
User=json_exporter
ExecStart=/usr/local/bin/json_exporter --config.file /etc/json_exporter/json_exporter.yml

[Install]
WantedBy=multi-user.target

Save the file and exit the editor.

Optional: Clean Up Installation Files

Remove the json_exporter git repository.

cd
rm -rf ~/git/json_exporter

Notes

json_exporter will listen on port 7979. This is the port from which Prometheus will query for metrics.

We have not yet configured nor started json_exporter.

The instructions below are for version 0.5.0. , and adapt the instructions below.

Check for newer versions of json_exporter

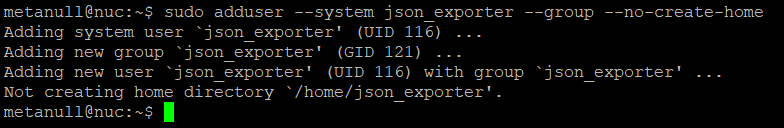

Results of adduser command
Results of git clone command
Results of make build command
Results of json_exporter command
